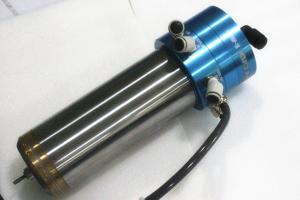

Instead of WWD1822 200,000RPM KL200P1 PCB Drilling Spindle
Detail Information:
MODEL | REPLACE FOR | DESCRIPTION | KEY PRECISION | Machine reference |
KL200P1 | D1822 D1686 | SPEED RANGE: 20,000 - 200,000 rpm Ø6.35mm-0.05mm precision drilling | Static Runout:<2µm Dynamic Runout:<6µm Vibration:0.5 MM/S | KLINGINBERG PLURITEC HITACHI LENZ SCHMOLL ANDERSON …. |
Main Application
For PCB little hole drilling
Dia of collet : Ø6.35mm-0.05mm
MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ;SCHMOLL….
Product Detail Information
KL200P1 high frequency spindle replace for WW D1822 or For WWD1686 Full Range from 20,000 to 200,000 rpm, air bearing type in long life, spindle weight 3.9kg with COLLET size Ø1/8” and body size Ø 61.9
Max power: 0.85KW
Air Pressure: 6.0 -6.5kgf/cm²
Coolant: Water oil
Fixed voltage: 200V
Fixed current: 3A
FREQUENCY (HZ): 334-3350
PTC or NTC Sensor for choose
Square wave available
Competitive Advantage:
Low Static
Low Dynamic RUN OUT
Stable character and long life
Suitable for precision drilling
Air bearing type offer Greater Precision, High Speed , Increased Tool Life, Improved Surface Finish, Long Bearing Life, Low Thermal Growth, Lack of Maintenance, Large Load Capacity , Reduced Vibration , Cleanliness.
SPECIFICATION:
Coolant water temperature | 20+2 |
Static runout | <2µm |
Dynamic runout | <6µm |
Collet torque(N.cm) | >13( 1/8”) |
Vibration | 0.5MM/S |
Temperature sensor ohms KΩ | R=0.10±5% AT 25℃ |
Open air pressure | <5.0kg/cm² |
Close air pressure | >2.5 kg/cm² |
Coolant water flux | >2.0(L/min) |
Coolant oil flux | >3.8(L/min) |
Air consume flux at 20krpm | 48(L/min) |
Radial load | 6.0kgf |
Compatible D1822 200,000RPM KL200P1 SPINDLE DRAWING
Why choose KLKJ?
With nearly 15 years technology in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.
All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character:
1. Air flow
2. Water flow
3. End float/lift off
4. Axial load (inner)
5. Axial load (outer)
6. Torque
7. Static RUNOUT
8. Dynamic RUNOUT
9. Motor check
10. Vibration
11. Material analysis & strictly quality test detection control
12. Stringent tolerance control
