KL-160D 0.85kw 160000 RPM PCB Drilling Or Micromachining Spindle Replace For 1722

Name: KL160D 085kw 160000 RPM PCB Drilling Or Micromachining Spindle Replace For 1722
Brand: KLKJ
Price: 1 USD

China KL-160D 0.85kw 160000 RPM PCB Drilling Or Micromachining Spindle Replace For 1722 factory

Brand Name : KLKJ

Model Number : KL-160D

Certification : ISO9001:2008 ; UKAS; IAF

Place of Origin : China

MOQ : 1PC

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 500 PCS/MONTH

Delivery Time : 10-25 working days

Packaging Details : STANDARD BROKEN-RESISTANCE PACKAGE

Material : Stell housing

Color : According to request

Bearing : Air bearing

Contact Now

PRODUCT DESCRIPTION

MODEL: KL-160D
NAME : AIR BEARING SPINDLE
SPEED RANGE: 20,000 - 160,000 rpm
BEARING TYPE: Air Bearing
SPINDLE WEIGHT: 4.1kg
COLLET SIZE: ø3.175

Air Pressure: 6 kgf/cm²
Motor power: 0.85KW
Coolant: Water or oil
Coolant water temperature: 20℃+2
Voltage: 60-189V
Rated. CURRENT (A): 4A
Dynamic Runout: ≤7μm
Vibration: 1.0MM/S
Temperature sensor ohms KΩ: R= 0.1±5%( AT 25℃)
TORQUE(g): ø3.175≥650g; >=150N.cm

Competitive Advantage:

LOW STATIC & DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE TIME
SUITABLE FOR PCB DRILLING INDUSTRY, COMPETIABLE

APPLICATION :

1, PRINTED CIRCUIT BOARD DRILLING PROCESS
MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….

Quick Detail:

MODEL	NAME	DESCRIPTION	Application	Machine reference	Bearing type
KL-160D	SPINDLE	SPEED RANGE: 20,000 -160,000 rpm Ø6.35mm-0.05mm precise drilling	Print Circuit Boad Drilling	KLINGINBERG PLURITEC HITACHI LENZ ANDERSON ….	Air Bearing

SPECIFICATION:

SPEED RANGE(RPM)	20,000-160,000
FREQUENCY (HZ)	334-2760
MOTOR TYPE	THREE PHASE
MOTOR OUTPUT POWER	0.85KW
TORQUE(g)	ø3.175≥650g
VOLTAGE (V)	60-189
COLLET CLAMPING DIAMETER (mm)	ø3.175
COOLING TEMPERATURE(°C)	20
BEARING TYPE	AIR BEARING
AIR PRESSURE (kg/cm2)	6
RUNOUT (μm)	≤7.0
VIBRATION (mm/s)	≤1.0
THREE PHASE RESISTANCE (Ω)	1.5±0.2
COLLET LOCK TYPE	DEAD COLLET
SPINDLE WEIGHT (kg)	Around 4.1
Rated. CURRENT (A)	4
GRIP AIR PRESSURE (kg/cm2)	≥2.0
RELEASE AIR PRESSURE (kg/cm2)	≤5.0

KL-160D 0.85kw 160000 RPM PCB Drilling Or Micromachining Spindle Replace For 1722

Product Tags:

160000 RPM PCB Drilling

0.85kw engraving spindle

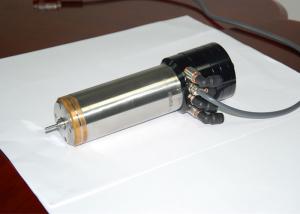

KL-160D 0.85kw 160000 RPM PCB Drilling Or Micromachining Spindle Replace For 1722 Images
